Good quality Cricket Stadium Lighting - LED Stadium Lights (SLR Series) – VKS Detail:

Unique Waterproof Structure and Processing Technology,
Large Finned Heat Dissipation, Effective Heat Dissipation
and Waterproof, Dustproof.

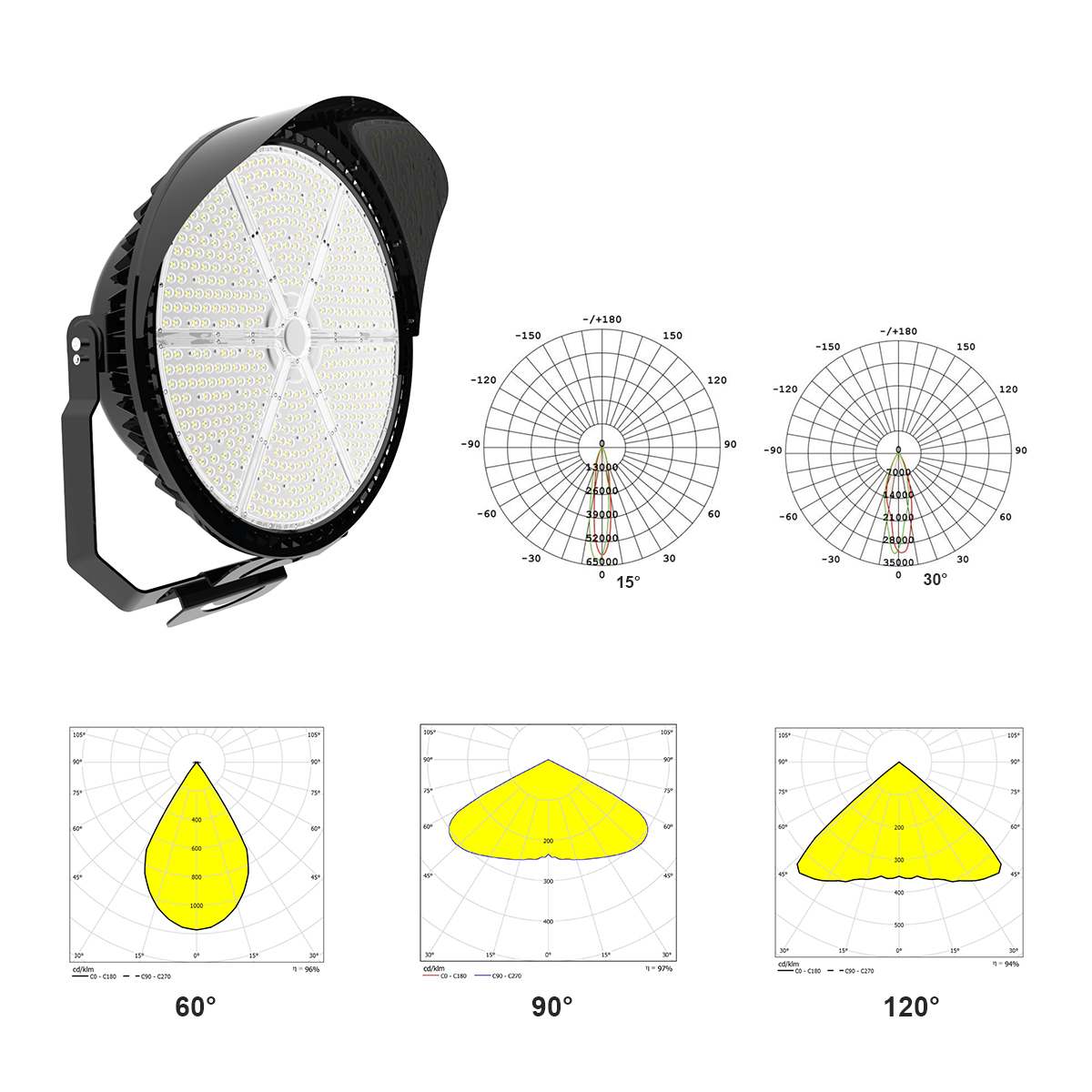

led stadium lights beam angle

The LED stadium that LED lights for stadium using high-power LED chip (3030/5050) light source, up to 90% of the transmission lens, the refraction of stadium led light, the utilization rate is more efficient, bending resistance, pressure resistance, heat resistance, high safety performance.

Professional light distribution
A variety of pitch light distribution angle can be selected: 15 °, 30 °, 60 °.

The LED outdoor stadium lighting and indoor stadium lights shell are made of ADC12 aluminum die-casting molding, green and pollution-free, does not contain lead, mercury and other polluting elements. Large area fin type heat dissipation, each fin is distributed with hollow small holes and groove design to increase the heat dissipation area, through the unique design of the shell structure, after a tight calculation of the heat dissipation angle, so that the flow of wind can accelerate the heat dissipation effect, reduce wind resistance, reduce the pressure load of the installation bracket, effective heat dissipation and waterproof, dustproof. The surface of the stadium high mast lighting is treated with UV-resistant and anti-corrosion powder spraying, and the overall luminaire reaches IP65 standard.

led-stadium-lights-heat-dissipation
led-stadium-lights-180

Angle adjustable

Installation bracket 180 ° adjustable, fixed screws using stainless steel hexagonal exposed screws, with two fixed rods, sealing good frame face cover, scientific and reasonable design, strong and durable, suitable for different places.

SPECIFICATON

Model VKS-CL565-300W VKS-CL565-400W VKS-CL565-800W VKS-CL565-1200W
Input Power 300W 400W 800W 1200W
Product Size(mm) Heat sink size
Ф400*85
463*400*220		 Heat sink size
Ф480*95
480*530*298		 Heat sink size
Ф565*102
565*652*206		 Heat sink size
Ф640*126
640*730*390
Input Voltage AC100-270V  50-60Hz
LED Type Lumileds/Cree
Power Supply Meanwell
Efficacy(lm/W)±5% 150Lm/W
Lumen Output±5% 45000 60000 120000 180000
Beam Angle 15°/30°/60°
CCT (K) 2700-6500K
CRI ≥80
IP Rate IP65
PF ≥0.95
TA Ring Temperature 30℃
IK Grade IK08
TC Point Temperature 79℃
Working Temp. -30℃—+45℃
Lens Material TEIJIN 1250Z
Housing Material ADC12 Dia-casting Alumnium
Light Distribution Method LED+Lens secondary light distribution
QTY(PCS)/carton 1pcs 1pcs 1pcs 1pcs
N.W.(KG/carton) 8 13 17 29.5

LED Stadium Lights Product Exploded View


led-stadium-lights-breakdown

LED Stadium Light Product Size


led-stadium-lights-size

Sports Lighting LED Package&Installation


led-stadium-lights-package

APPLICATION

or baseball stadium lights, basketball stadium lights, soccer fields, cricket stadium lighting, sports fields, golf courses, docks, squares, outdoor parking lots, high-pole lights, tunnels, shopping malls, supermarkets, warehouses, large assembly workshops, forging workshops and other indoor and outdoor lighting places


APPLICATION-1


APPLICATION-2


APPLICATION-4


APPLICATION-5
