High Quality Street Light - 130lm/w 150lm/w 170lm/w Led Street Lighting – VKS Detail:

130lmw 150lmw 170lmw Led Street Lighting
130lmw 150lmw 170lmw Led Street Lighting  (2)
130lmw 150lmw 170lmw Led Street Lighting  (3)
130lmw 150lmw 170lmw Led Street Lighting  (4)
130lmw 150lmw 170lmw Led Street Lighting  (5)
130lmw 150lmw 170lmw Led Street Lighting  (6)

SPECIFICATON

Model

VKS-ST8-50W

VKS-ST8-75W

VKS-ST8-120W

VKS-ST8-180W

Power

50W

75W

120W

180W

Product size(mm)

L463*W173*H87mm

L570*W200*H88mm

L611*W240*H89mm

L680*W260*H89mm

Product Size with light sensor(mm)

L463*W173*H110mm

L570*W200*H110mm

L611*W240*H111mm

L680*W260*H111mm

Input Voltage

AC90-305V 50/60Hz

LED Type

Lumileds(Philips) SMD 3030/5050

Power Supply

Meanwell / ELG / SOSEN / Inventronics driver

Efficacy(lm/W)

130/150/170LM/W(5000K, Ra70) optional

Lumen Output±5%

6500-8500LM

9750-12750LM

15600-20400LM

23400-30600LM

Beam Angle

60° / 90° / 120°/T2M/T3M/T4M

CCT (K)

3000K/4000K/5000K/5700K

CRI

Ra70(Ra80 for optional)

IP Rate

IP66

PF

>0.95

Dimming

Non-dimming (Default) /1-10V Dimming / Dali dimming

Intelligent Control

Time control/Light Sensor

Material

Die-Cast + PC Lens

Operating Tenperature

-40℃ ~ 65℃

Humidity

10%~90%

Finish

Powder Coating

Surge Protection

4kV line-line(10KV,20KV for optional)

Mounting Option

 Bracket

Warranty

5 Years

Q’TY(PCS)/carton

1PCS

1PCS

1PCS

1PCS

N.W.(KG/carton)

2.0kg

3.1kg

3.8kg

4.6kg

Carton Size(mm) 540*266*165mm 623*255*150mm 666*295*150mm 736*315*150mm
G.W.(KG/carton)

2.4kg

3.6kg

4.5kg

5.4kg

130lm/w 150lm/w 170lm/w Led Street Lighting Product Size


8代路灯套件规格书.cdr

130lm/w 150lm/w 170lm/w Led Street Lighting Product Size(with light sensor)


8代路灯套件规格书.cdr

Sport 130lm/w 150lm/w 170lm/w Led Street Lighting Packing


8代路灯套件规格书.cdr

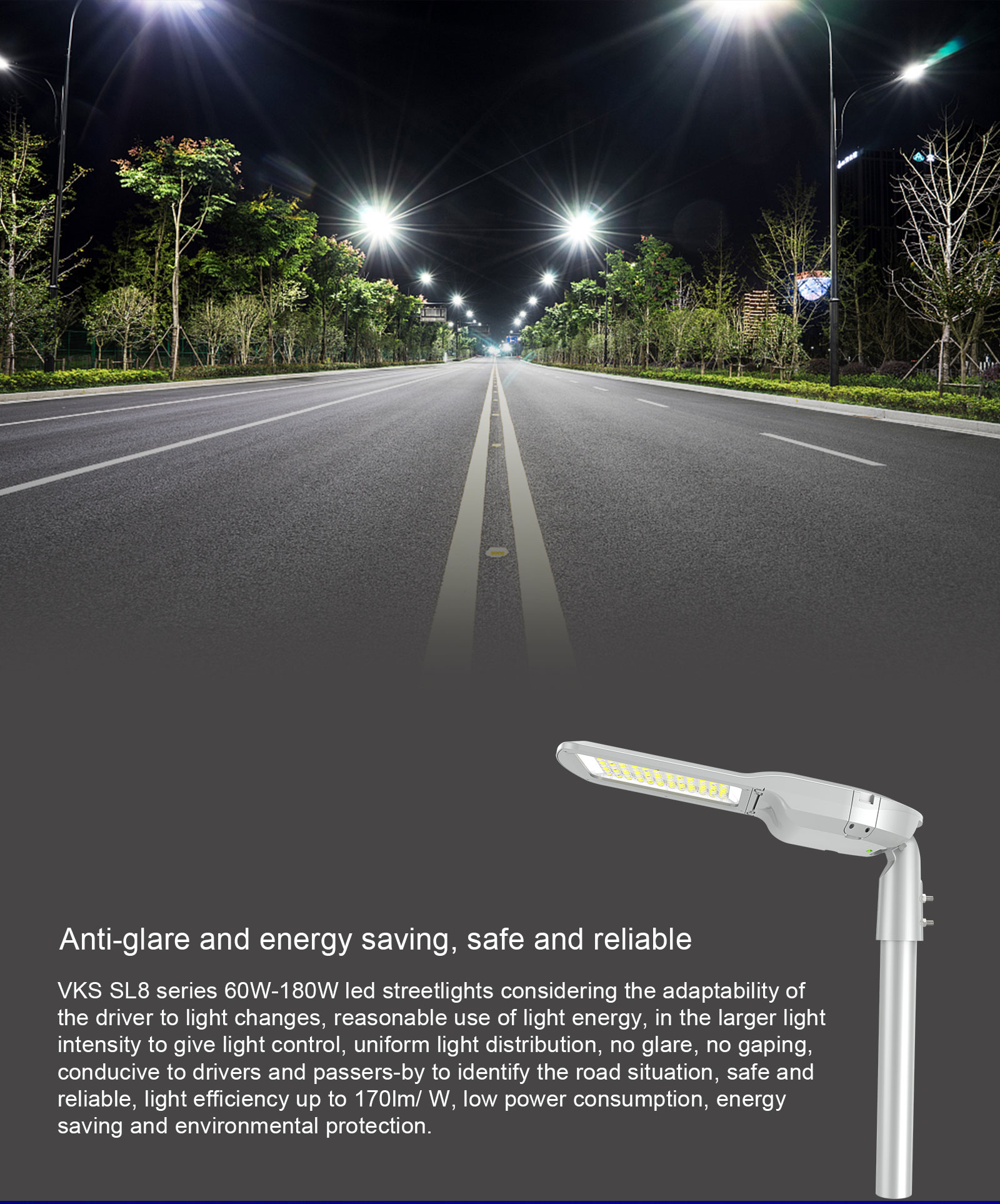

APPLICATION

VKS SL8 series street lights led with high efficiency, safety, energy saving, environmental protection, long service life, fast response speed, high color rendering index of unique advantages, compared with the traditional street light, LED street lights maintenance cost is extremely low, mainly used in the streets, factories, schools, gardens, city square, garden and living community, community, park, garden, the main leisure walk ofstreet led lighting, etc

VKS SL8 series street light led bulb have no bad glare and stroboflash. Eliminate the glare, visual fatigue and sight interference caused by the bad glare of ordinary street lamps, improve the safety of driving;  There is no delay in starting, the normal brightness is reached when the power is turned on, and there is no need to wait, eliminating the long time starting process of traditional street lamps;  Green environmental protection, pollution-free, widely used in trunk road, secondary trunk road, branch road, factory, school, garden, city square, courtyard and so on.


application4


Product detail pictures:

High Quality Street Light - 130lm/w 150lm/w 170lm/w Led Street Lighting  – VKS detail pictures

High Quality Street Light - 130lm/w 150lm/w 170lm/w Led Street Lighting  – VKS detail pictures

High Quality Street Light - 130lm/w 150lm/w 170lm/w Led Street Lighting  – VKS detail pictures

High Quality Street Light - 130lm/w 150lm/w 170lm/w Led Street Lighting  – VKS detail pictures

High Quality Street Light - 130lm/w 150lm/w 170lm/w Led Street Lighting  – VKS detail pictures
